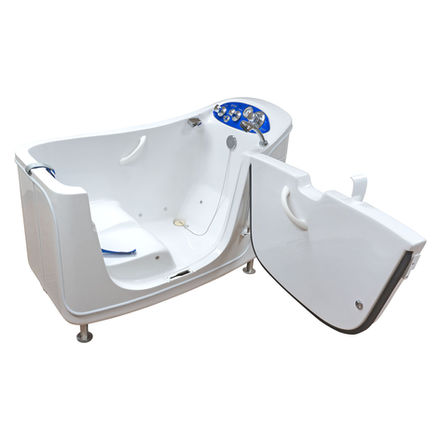

The RG9 Victoria is a free-standing bathtub with a seat that allows the caregiver 360 degree unobstructed access to the resident.
The low threshold and wide side-entry bathtub door allows easy access for residents with various degrees of mobility and the built-in contoured seat allows the resident to sit comfortably and safely in a slightly reclined position.
The sleek exterior design of the RG9 Victoria bathing system will give your bathing area an upscale look.
Caregivers will enjoy the RG9 Victoria for its ease of use and the improved quality of care they can provide the resident. Featuring a full range of standard and optional features, the RG9 Victoria bathing system is designed to enhance the bathing experience for the resident.
Select a product configuration.
Applications & Features
Thermostatic Mixing Valve with anti-scald protection that dispenses 15 gallons per minute for fast tub fill

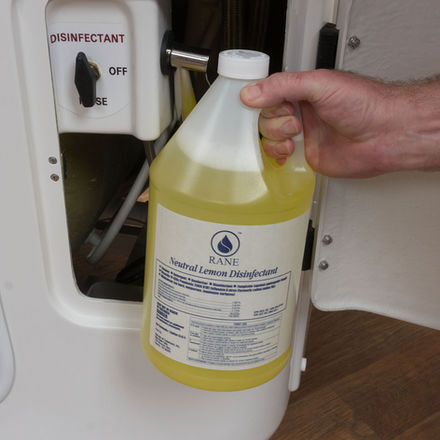

Built-in Disinfection System for external surfaces minimizes the risk of cross-infection
Handheld Shower Wand which can be used at the same time the tub is filling
Analog Thermometer for monitoring tub-fill and showerwand temperatures
Lap and Shoulder Harness for resident safety
Secondary Door Lock to prevent accidental door opening when in use
3/4" Supply Lines constructed of stainless steel
Length - 60.75"
Width - 33"
Height (to top of console) - 43" (lowest setting)
Height (to top of door) - 36.5" (lowest setting)
Adjustable Leveling Legs - 2" max.
Seat Width (interior) - 25"
Seat Height - 18" (lowest setting)
Threshold Height - 11" (lowest setting)
Transfer Device Access - 5" H x 44" W
Weight Capacity (occupant) - 600 lb.
Water Capacity (maximum) - 52 gallons
Fill Time - 3 minutes, 28 seconds
Drain Time - 2 minutes, 30 seconds
Water Supply Inlet - 3/4" diameter
Drain Size - 1.5"
Electrical Supply - 115V AC; 60Hz; 15 amp
Door Swing - Outward
Door Configuration - Right or Left Hinge
External finishes and composite shell: 5 Years
All moving and stationary parts: 3 years
Door seal: Lifetime
RG9 - Victoria Freestanding Tub
