Caspian Tub


The RB14-IM Caspian Rane Tub is designed specifically for care facilities that need to bathe residents of size.

The low threshold side-entry door allows easy access for larger residents with various degrees of mobility. The extra-wide built-in contoured seat allows the larger resident to sit comfortably and safely in a slightly reclined position. This large walk-in bathtub is designed to be installed against a wall, allowing the caregiver access to the resident from 3 sides.

Caregivers will enjoy the RB14-IM Caspian Rane Tub for its ease of use and the improved quality of care they can provide for their larger residents. Featuring a full range of standard and optional features, the RB14-IM Caspian large walk-in bathtub is designed to enhance the bathing experience for the resident.

The Rane Bathing and Accessibility product line provides a unique combination of style, ease of use, comfort and low cost of ownership.

RB14D - Caspian Bariatric Bathing System (Soaker)
RB14DAS - Caspian Bariatric Bathing System with Air Spa

Select a product configuration.

Add to Quote

Quote Updated!

Applications & Features


  • Extra-wide, built-in, contoured seat

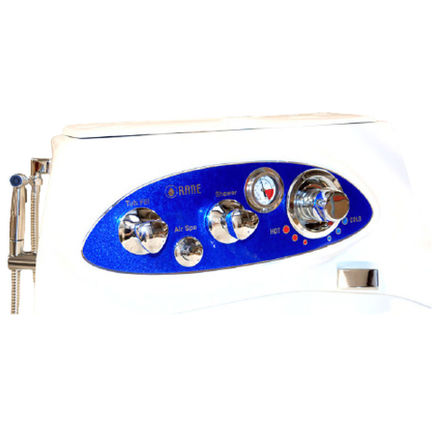

  • Thermostatic Mixing Valve with anti-scald protection that dispenses

  • 15 gallons per minute for fast tub fill

  • Built-in Disinfection System for external surfaces minimizes the risk of cross-infection

  • Handheld Shower Wand which can be used at the same time the tub is filling

  • Analog Thermometer for monitoring tub-fill and shower wand temperatures

  • Lap and Shoulder Harness for resident safety

  • Secondary Door Lock to prevent accidental door opening when in use

  • 3/4" Supply Lines constructed of stainless steel. 24-hour Service Department

Optional Features

  • CleanRane Air Spa System with variable speeds that enhance the therapeutic and relaxing effects of bathing for the user


Length - 60 inch

Width - 33.5 inch

Height (to top of console) - 50 inch (lowest setting)

Height (to top of door) - 36.5 inch (lowest setting)

Adjustable Leveling Legs - 2 inch max.

Seat Width (interior) - 28 inch

Seat Height - 21 inch (lowest setting)

Threshold Height - 13 inch (lowest setting)

Transfer Device Access - 7" H x 41" W

Weight Capacity (occupant) - 600 lbs

Water Capacity (maximum) - 52 gallons

Fill Time - 3 minutes, 28 seconds

Drain Time - 2 minutes, 10 seconds

Water Supply Inlet - 3/4 inch diameter

Drain Size - 1.5 inch

Electrical Supply - 115V AC; 60Hz; 15 amp

Door Swing - Outward

Door Configuration - Right or Left Hinge


External finishes and composite shell:  5 Years

All moving and stationary parts: 3 years

Door seal: Lifetime


Configuration Filters

Select an option:
Select additional options:

Available Configurations

RB14 - Caspian Bariatric Bathing System
